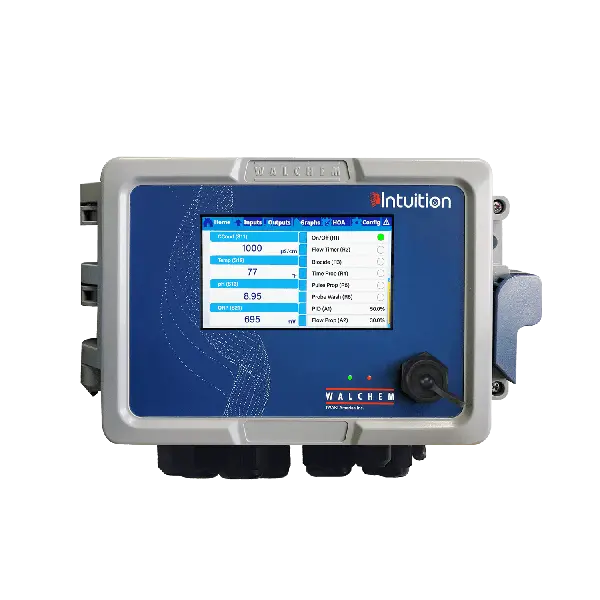

Walchem Controller Intuition-6

(Walchem Controller Intuition-6)
Retail Price Each: Call for Price
Quantity:
Feature up to 4 inputs and 6 relay outputs. The universal sensor input is capable of using contacting conductivity, electrodeless conductivity, pH, ORP or disinfection sensor types. Optionally select a dual analog input board or a combination sensor/analog input board.
4 Inputs / 6 Outputs

Intuition-6 Key Benefits:

  • Large touchscreen display with icon based programming makes setup easy
  • Universal sensor input provides extraordinary flexibility; the same controller can be used with almost any type of sensor needed
  • Six relay control outputs
  • Combination Sensor Input & Analog Input board that adds even more flexibility
  • Lead/Lag control of relays
  • Optional dual analog (4-20 mA) input for Fluorometers or nearly any other process value
  • Multiple language support allows simple setup no matter where your business takes you
  • Economical wall-mount package for easy installation
  • On-screen and web page graphing of sensor values and control output status
  • The Intuition-6™ with amperometric chlorine sensors can be used for reporting chlorine rural measurements in accordance with EPA Method 334.0.
  • Six virtual inputs and six virtual outputs
  • Complete flexibility in the function of each relay
  • Email Alarm messages, Datalogs, Graphs, or System Summary reports
  • Ethernet option for remote access via the Internet, LAN, BACnet or Modbus/TCP

Specifications
  • Manufacturer: Walchem
  • Functionality: pH/ORP
